Product Description

Product Description
Custom Reduction Micro Planetary Gearbox Permanent Magnet Brushless Brush DC Motor 1.5V 3V 12V 24V for Dc Motor Toy
Custom Reduction Micro Planetary Gearbox Permanent Magnet Brushless Brush DC Motor 1.5V 3V 12V 24V for Dc Motor Toy

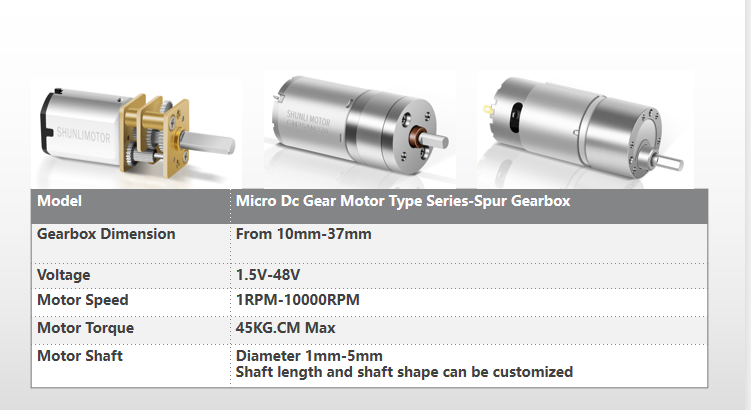

Micro Planetary Gearbox Permanent Magnet Brushless Brush DC Motor Features
Key Features & Technical Advantages

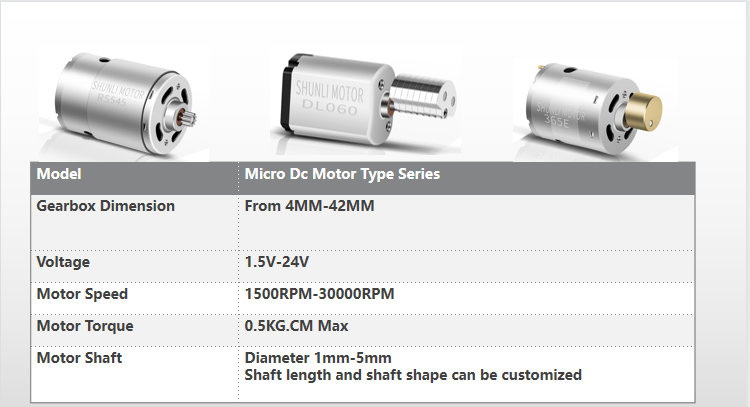

Micro Gear Motor Spec 1

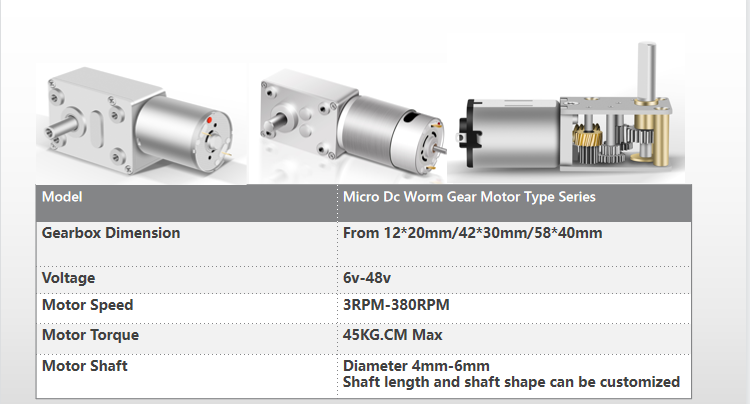

Micro Gear Motor Spec 2

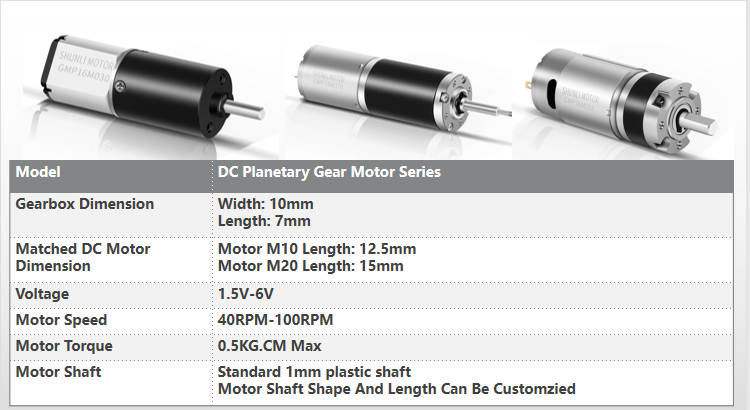

Micro Gear Motor Spec 3

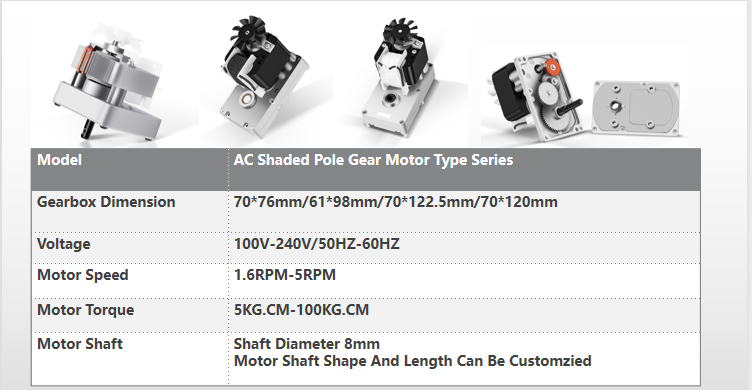

Micro Gear Motor Spec 4
Reference Drawings
RS - 545 A

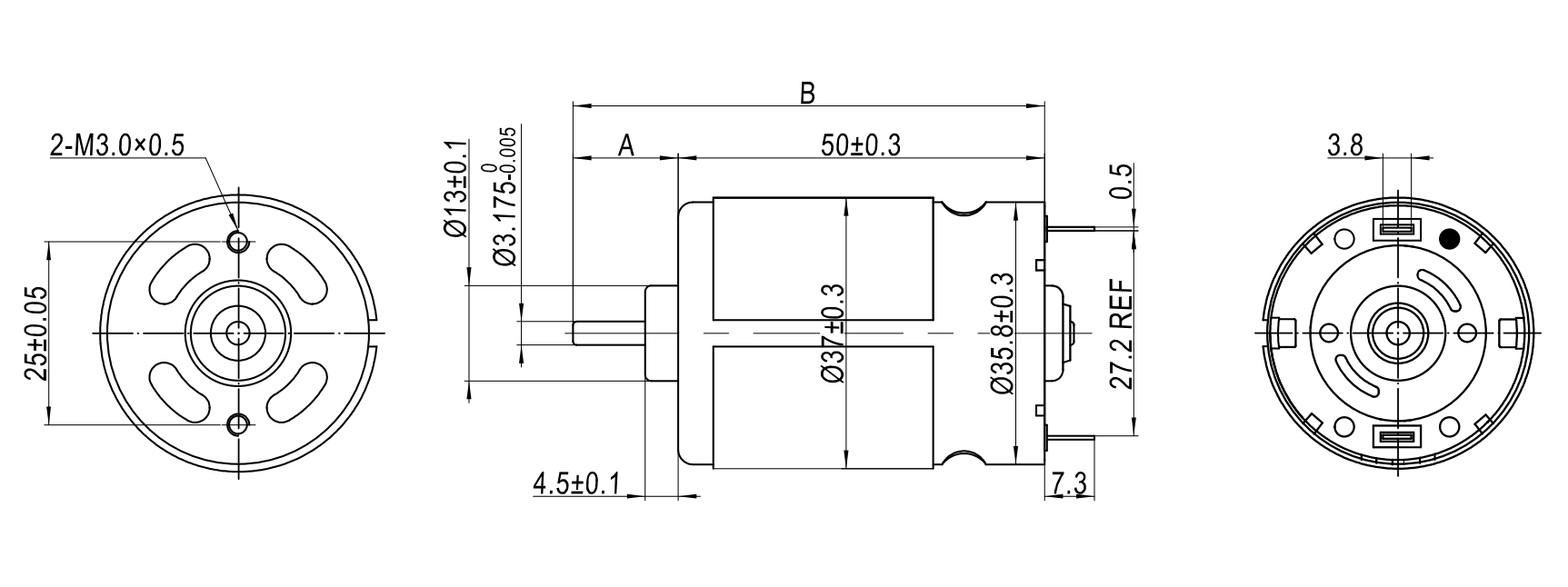

RS-545 A Permanent Magnet DC Motor Reference Drawing

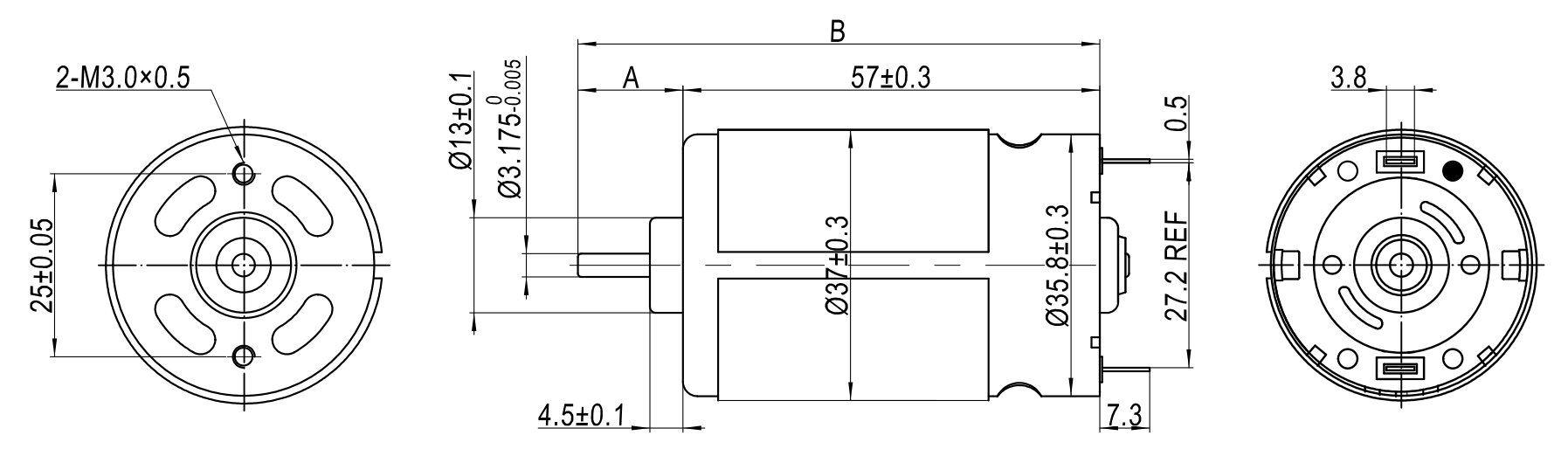

RS - 555 A
RS-555 A Permanent Magnet DC Motor Reference Drawing
The length of shaft can be customized according to your specifications.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage(V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7 / 262 10.6 4.8 204 / 2080
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6 / 261.3 40.36 48.89 281.4 / 2870

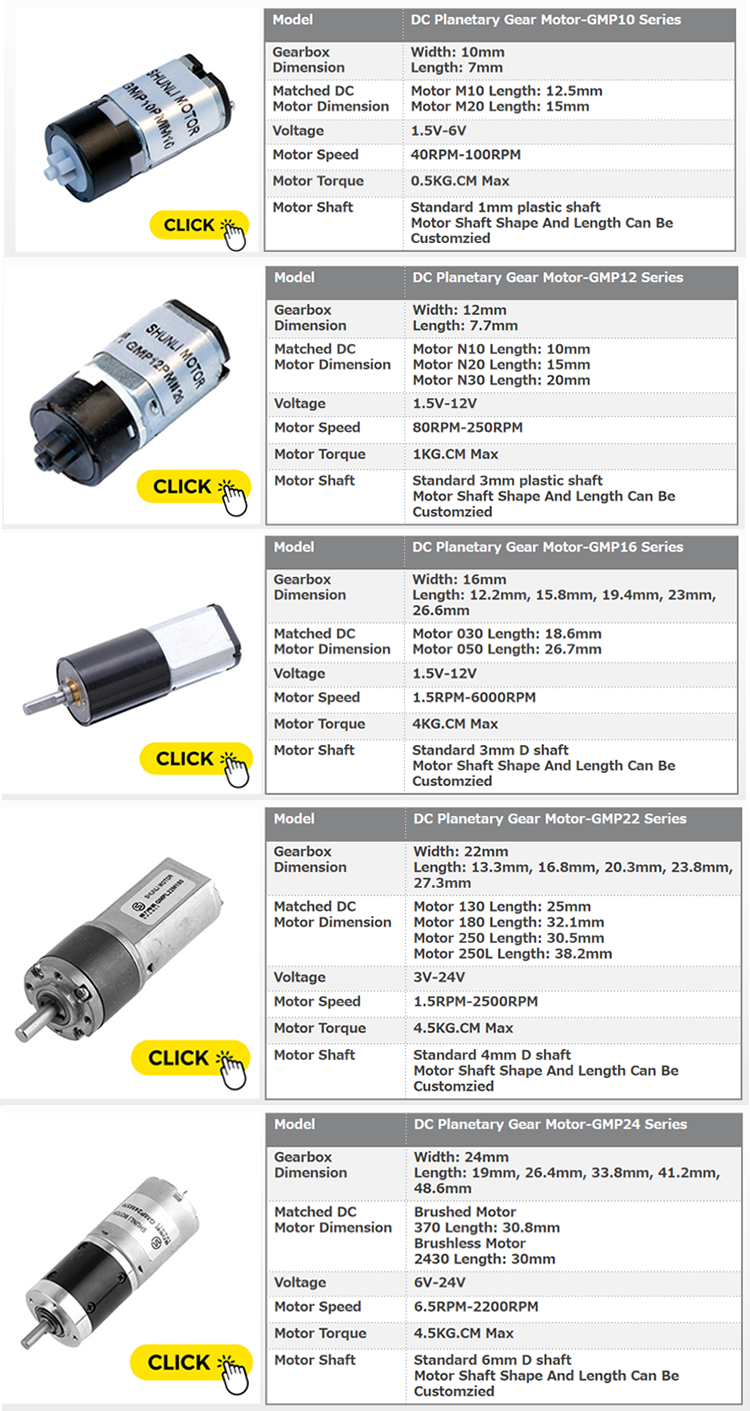

Micro Gear Motor Inspection and Production Flow
Product Gallery
Planetary Gearbox Motor Detail View 1
Planetary Gearbox Motor Detail View 2
Planetary Gearbox Motor Detail View 3
Planetary Gearbox Motor Detail View 4
Planetary Gearbox Motor Detail View 5
Planetary Gearbox Motor Detail View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience of over 14 years.
What is the payment term for new customers?
We can arrange secure online orders for our new customers, supporting online payments with MasterCard, Visa, PayPal, or T/T.
I cannot find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other international certificates. If you have additional certification requirements, we can apply for them accordingly.
How is your quality control structured?
We have professional inspection staff on every production line process. Once the motor is complete, we perform testing using specialized quality equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
