12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
1 / 4
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

Send Inquiry

Product Description

Product Banner
Product Image
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Support Customization The Transmission Dimensions And Motor Parameters Can Be Customized

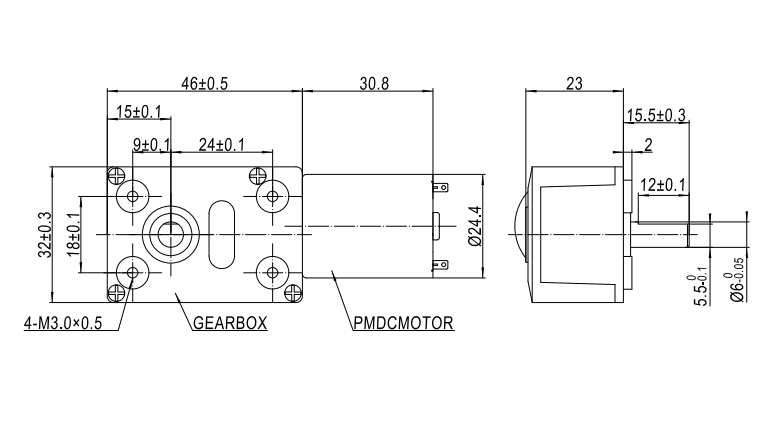

Product Drawing

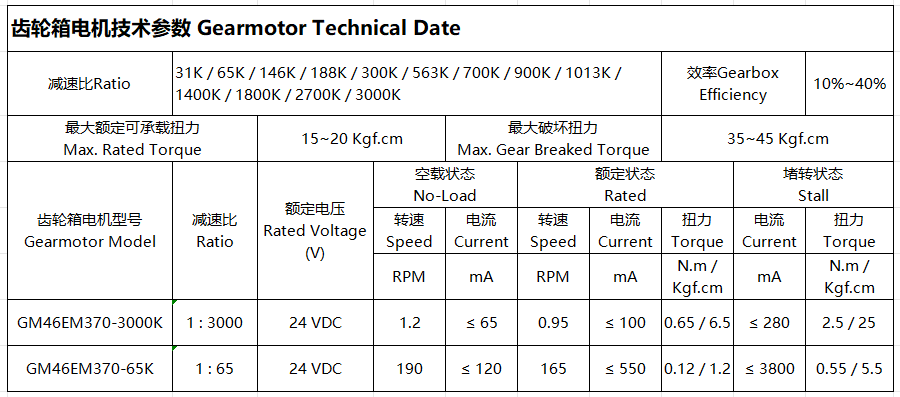

Performance Curve

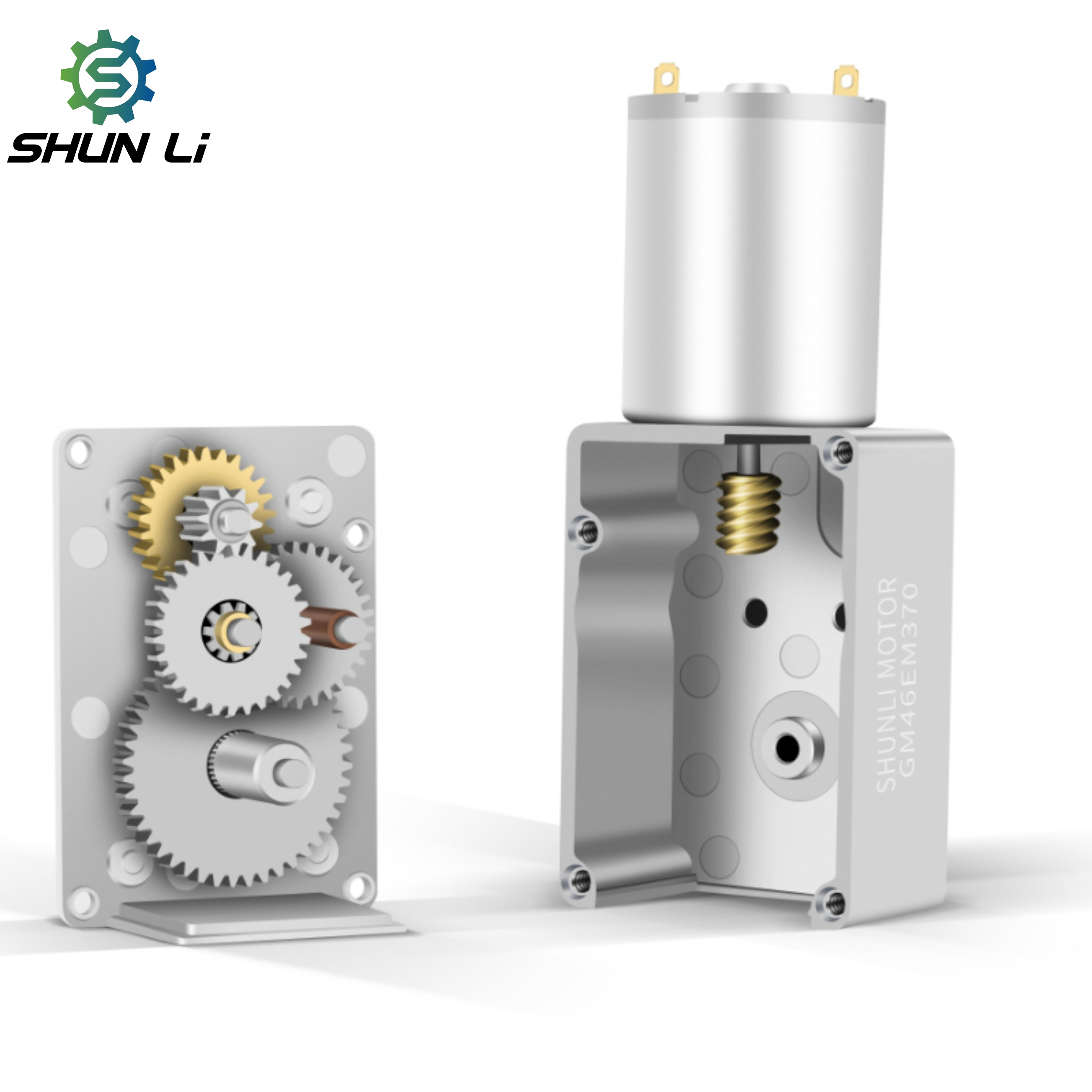

Product Overview
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Q1 Are you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2 What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Q3 I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Q4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5 How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we use professional testing machines to evaluate the motor quality, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester, etc.
