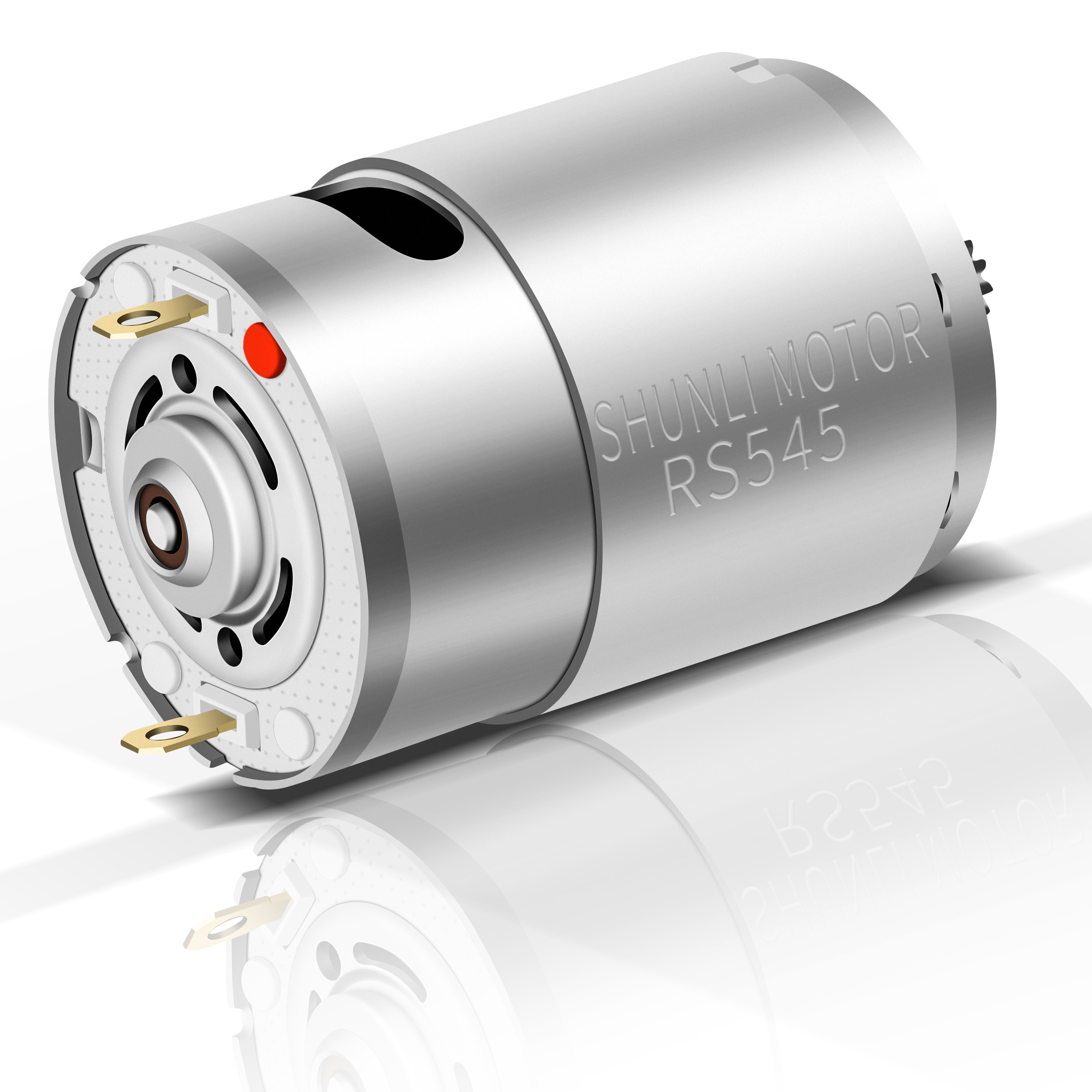

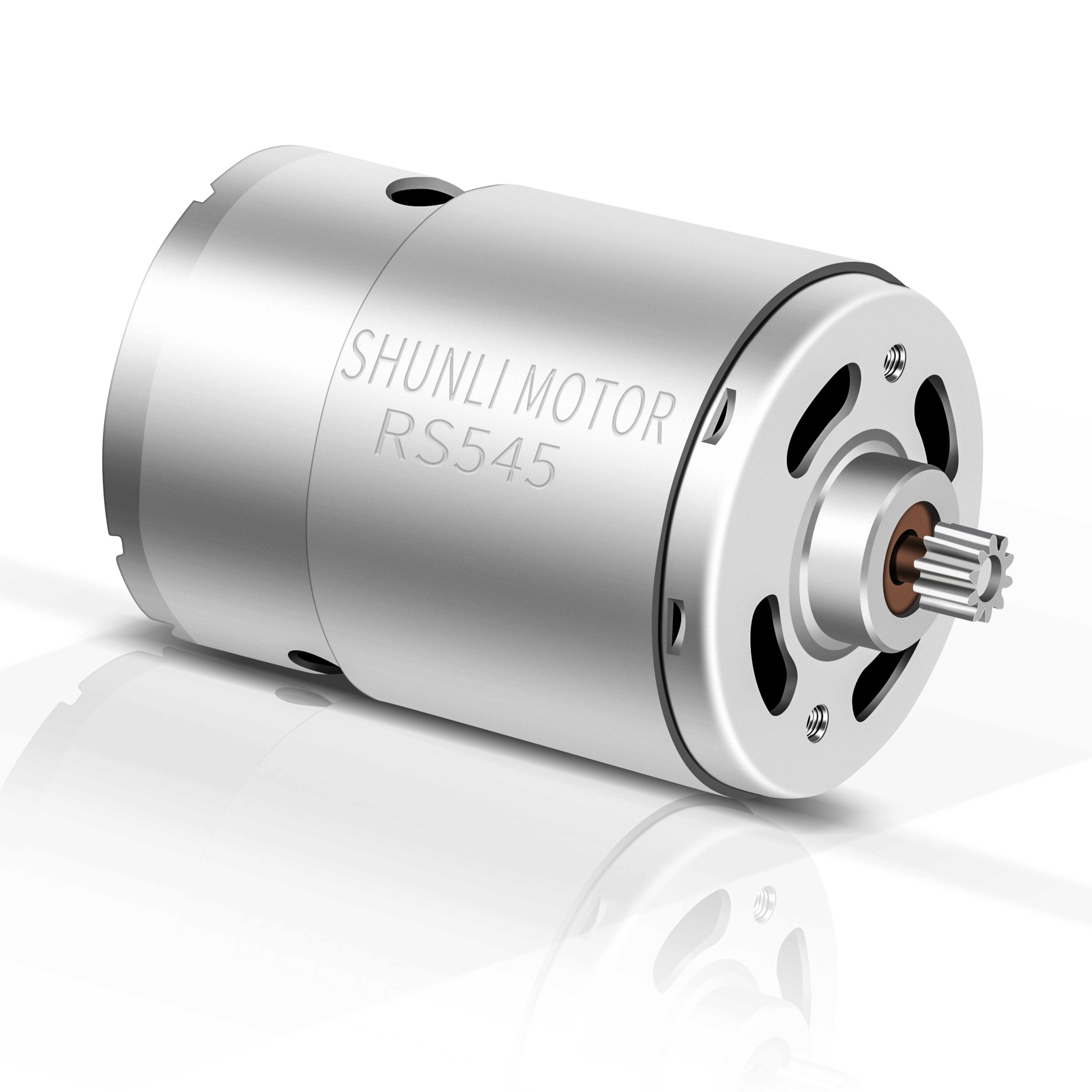

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

⚙️ Motor Customized Specification, Please contact me.

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

------ RS - 545 A

❓ Frequently Asked Questions (FAQ)

Q: What is the voltage range for the RS 550, 545, and 555 DC motors?

These PMDC motors offer a wide operating voltage range, typically from 6.0V to 24.0V DC, making them suitable for various power configurations including 6V, 12V, 18V, and 24V.

Q: What are the typical applications for these high RPM DC motors?

These motors are commonly used in high-speed applications such as power tools, garden equipment, vacuum cleaners, smart home appliances, and custom DIY automation projects.

Q: Can the technical specifications of these motors be customized?

Yes, technical parameters such as operating voltage, speed (RPM), torque, output power, and shaft dimensions can be customized to meet your specific application requirements.

Q: What is the maximum speed (RPM) these motors can achieve?

Depending on the model and voltage configuration, these high-speed motors can achieve no-load speeds ranging from 4,500 RPM up to 30,000 RPM.

Q: How do I choose between the RS-550H and RS-555H models?

Please refer to the PMDC Motor Technical Data table above. The RS-550H models generally offer higher rated speeds (up to 16,000 RPM at 12V), while the RS-555H models provide different power and torque distributions suitable for specific load requirements.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description
