BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |

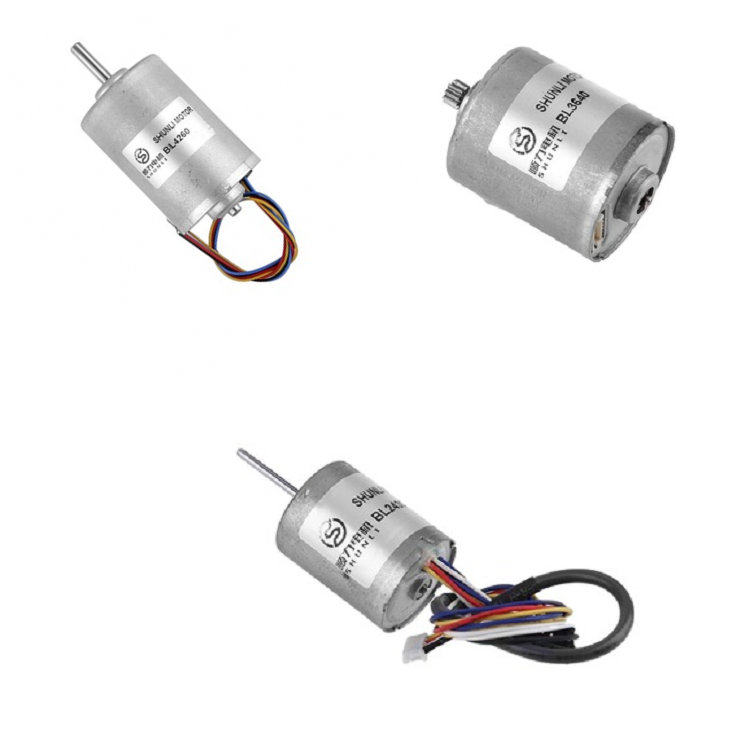

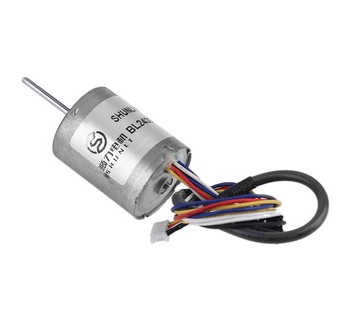

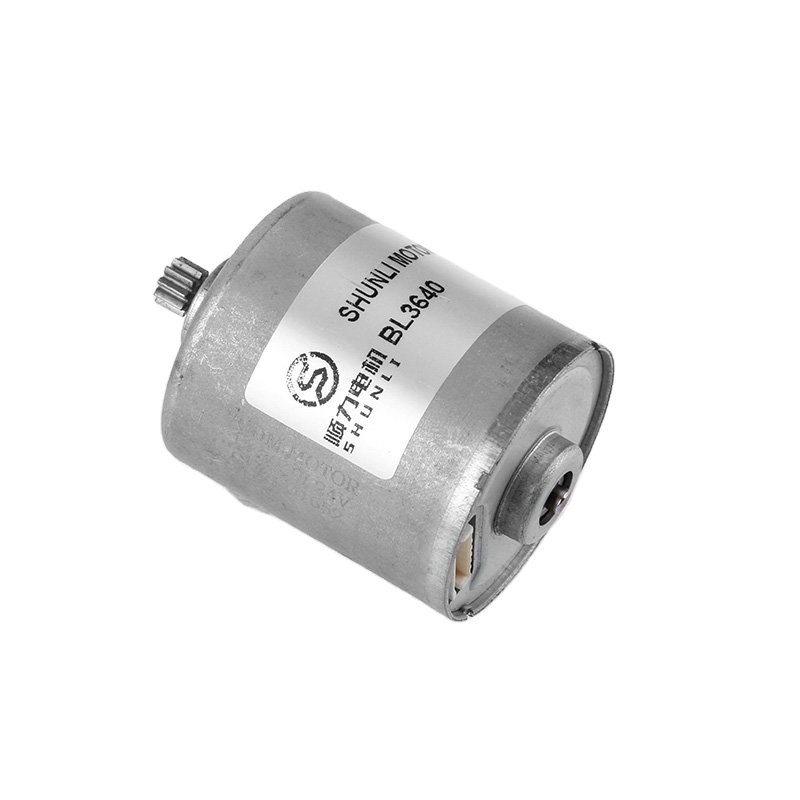

This high-speed Brushless DC motor is designed to support input options of 12V, 18V, and 24V, making it highly versatile for various cooling fan applications.
The motor can achieve extreme high-speed performance levels depending on the configuration, operating at speeds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.
It delivers a robust rated torque ranging from 100 G.CM to 150 G.CM, ensuring efficient performance under workload requirements.
The motor has a compact housing diameter of 36 mm, making it an excellent fit for space-constrained high-performance fan applications.
The terminal features 5 pins: Pin 1 (VCC) for power, Pin 2 (FG) for speed feedback, Pin 3 (CW/CCW) for direction selection, Pin 4 (GND) for ground, and Pin 5 (PWM) for speed regulation.
Yes, customized motor specifications can be tailored to meet your unique project requirements. Please contact technical support to discuss custom motor configurations.
