Q1: What voltage ratings are supported by this brushless DC motor?

A: This micro brushless motor supports versatile DC voltage configurations, including 12V, 18V, and 24V inputs, making it adaptable for various electrical power supplies.

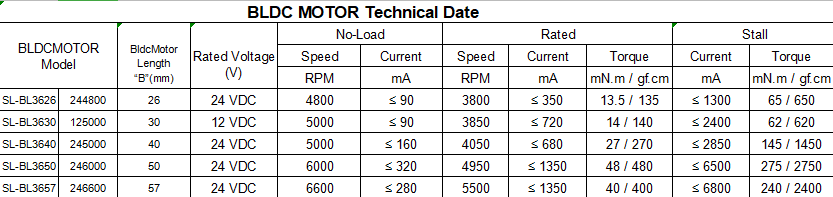

Q2: What speed parameters are available for this motor?

A: Depending on your operational requirements, the motor offers standard rated speeds of 1500 RPM, 3000 RPM, and 4000 RPM.

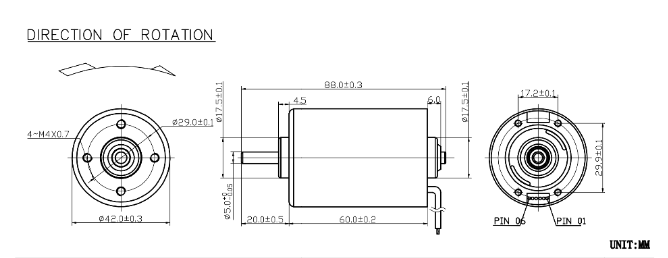

Q3: What are the main pin terminations for the motor interface?

A: The motor features a 5-PIN configuration: PIN 1 (VCC) for power input, PIN 2 (FG) for speed signal output, PIN 3 (CW/CCW) for direction control, PIN 4 (GND) for ground, and PIN 5 (PWM) for pulse-width modulation speed regulation.

Q4: Can the specifications of these micro motors be customized?

A: Yes. We support customization for the motor parameters. Please contact us with your specific engineering requirements to tailor the shaft dimensions, voltage, or speed profile.

Q5: What target applications are these permanent magnet motors ideal for?

A: These high-torque brushless motors are widely utilized in washing machines, RC planes, DIY technical tools, fans, miniature robotics, and liquid pump systems due to their efficiency and compact design.
