TTM Motor
1 / 5
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |

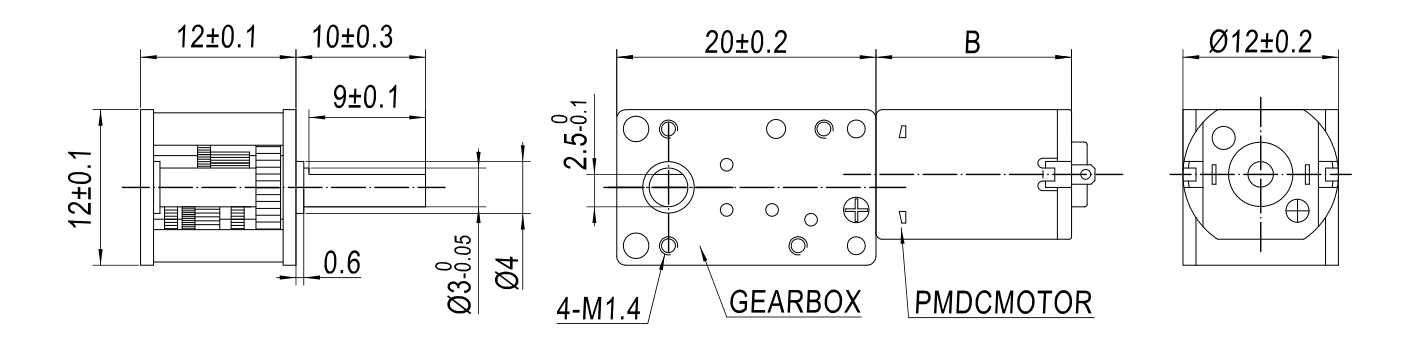

| PMDC MOTOR Model | Length “B”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |

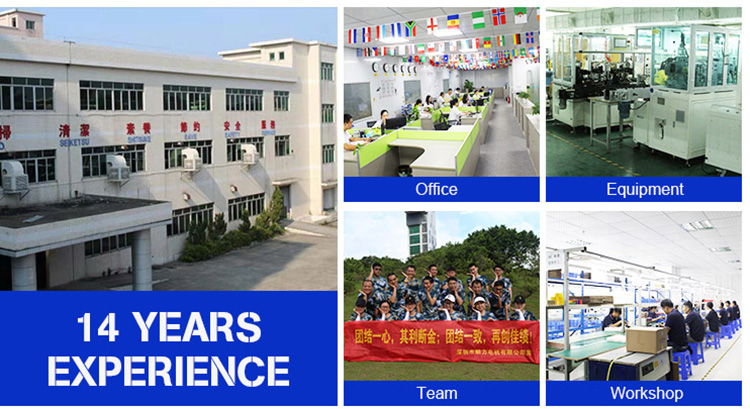

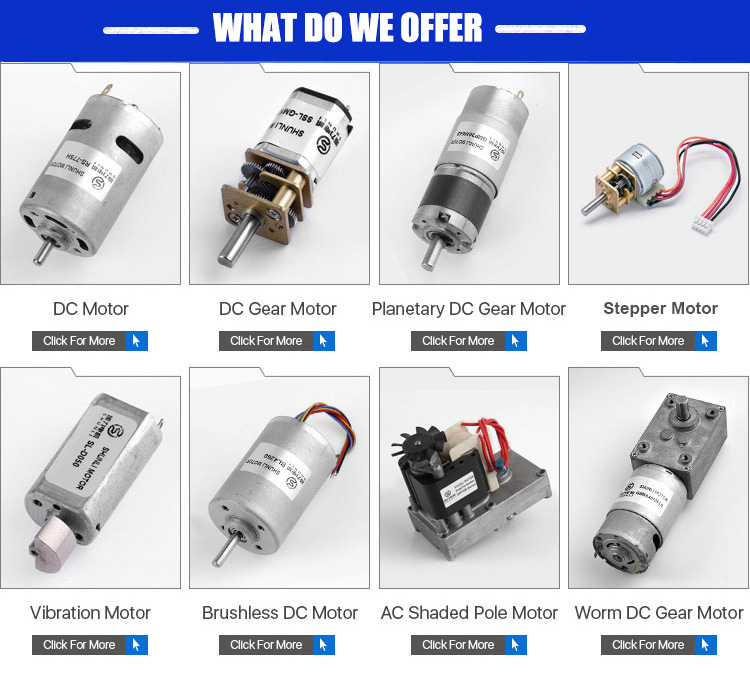

Established in 2005, it is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
A: Yes, we can customize a suitable motor according to our customer's requirements.
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

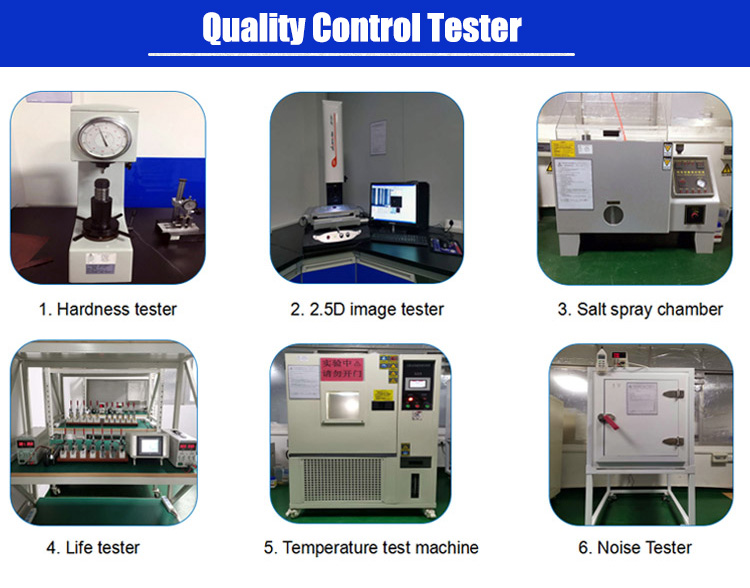

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
