| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
The motor operates within a working voltage range of 3V to 12.0V, allowing it to adapt to various power supply configurations for toy cars and DIY electronics.
The SGP01S-A130-14150-120 model features a rated voltage of 4.5V and a higher no-load speed of 100 rpm. The SGP01S-A130-18100-220 model operates at a rated voltage of 3.0V with a lower no-load speed of 50 rpm but offers higher stall torque.
The SGP01S-A130-18100-220 model provides a stall torque of 0.393 N.m (equivalent to 4.003 Kg.m) at a stall current of 2.15 A.

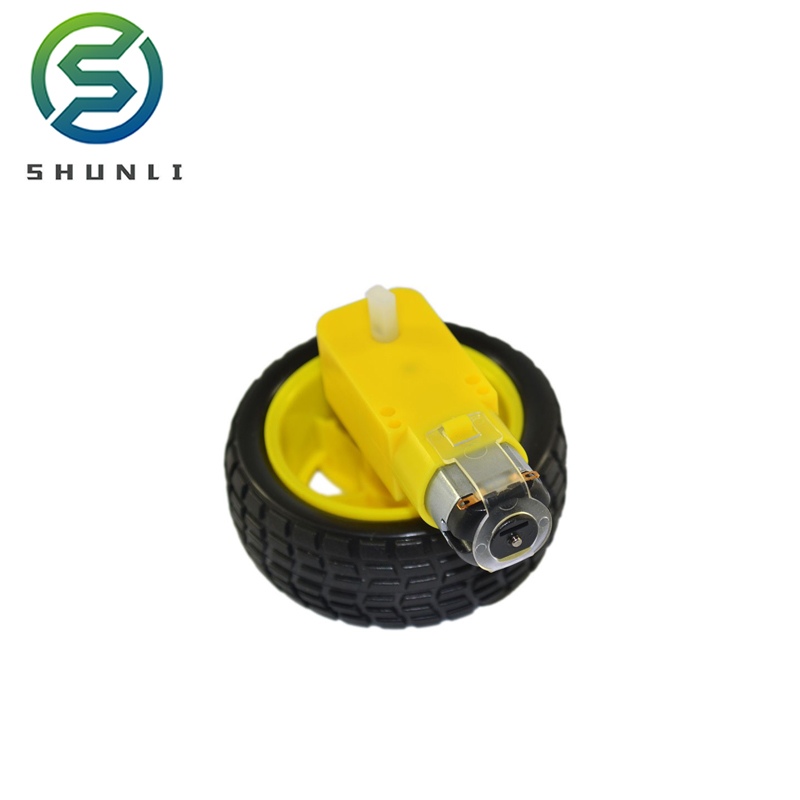

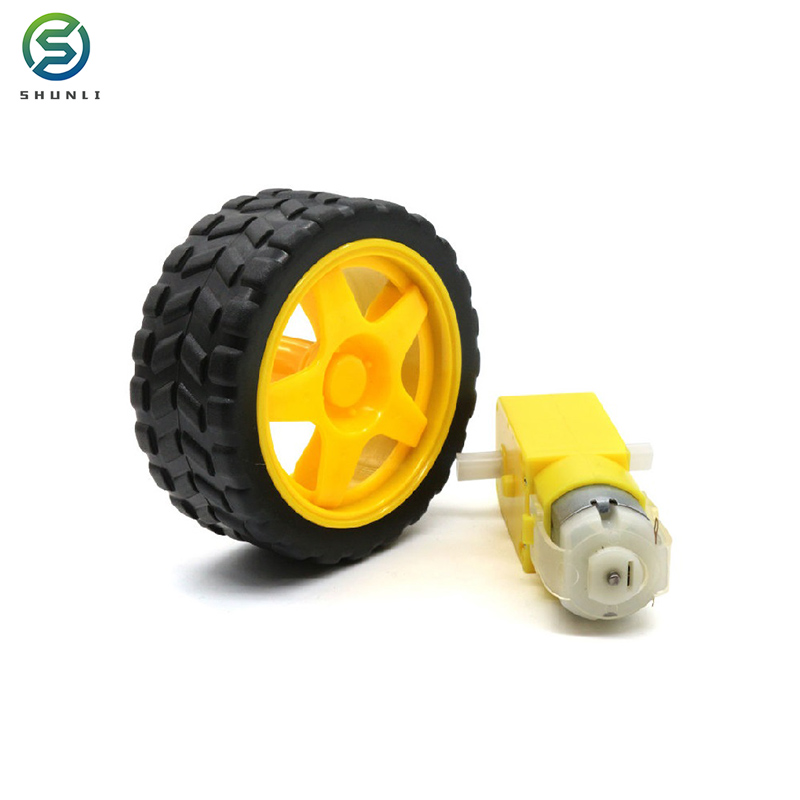

Yes, this DC gear motor is specifically designed to fit standard plastic wheels, making it an ideal choice for smart toy cars, robotics, and educational projects.
Both the SGP01S-A130-14150-120 and SGP01S-A130-18100-220 models have a low no-load current of approximately 0.2 A, ensuring efficient energy consumption during operation.
