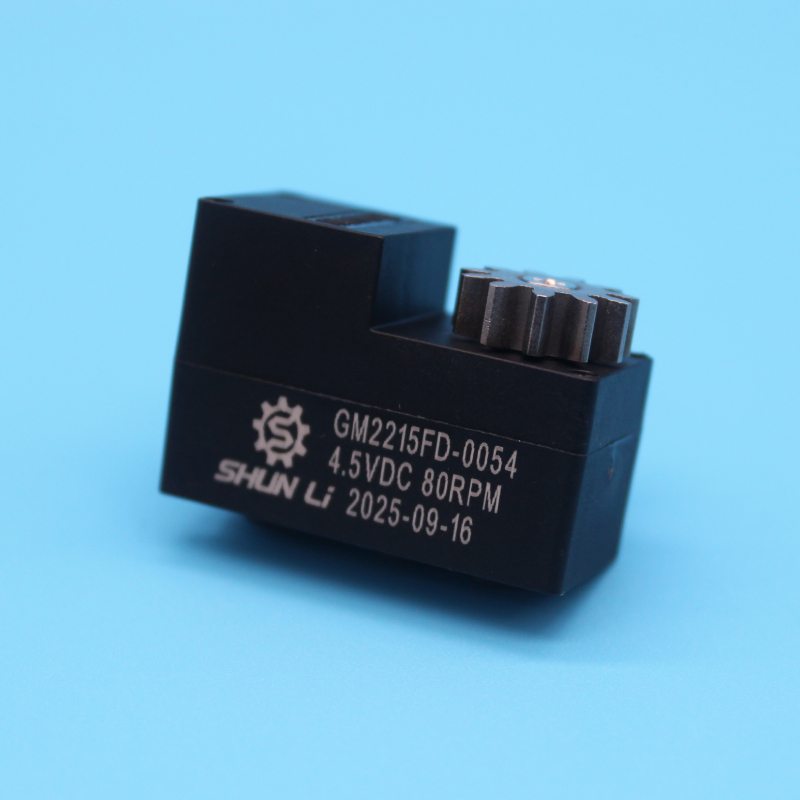

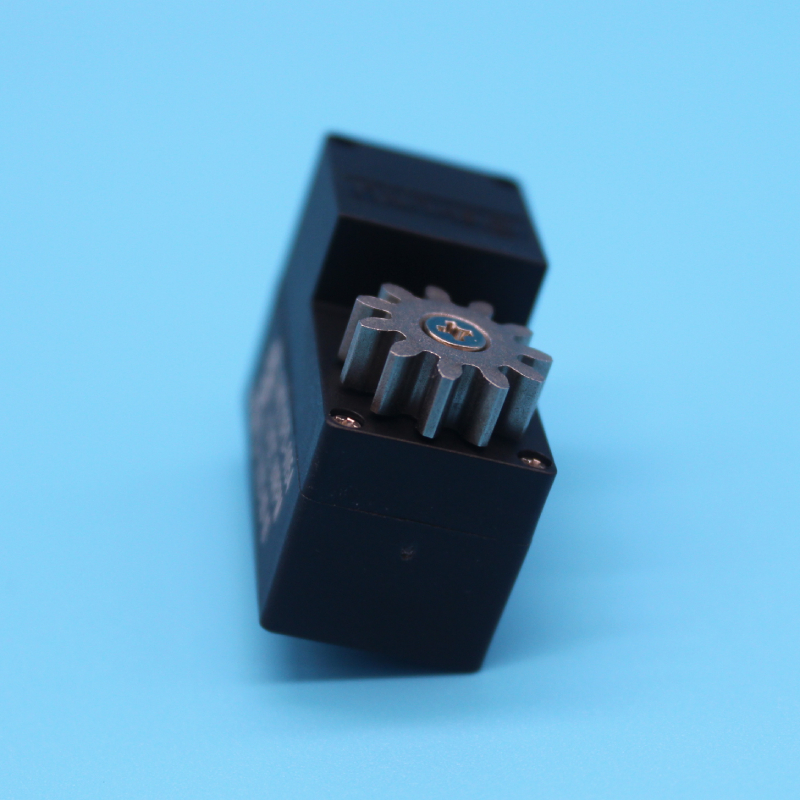

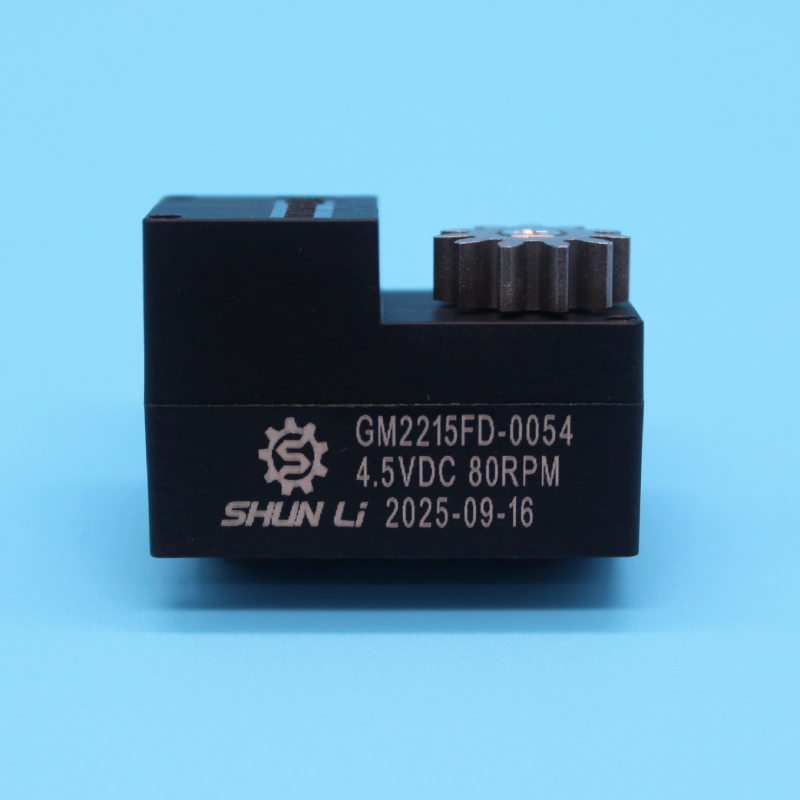

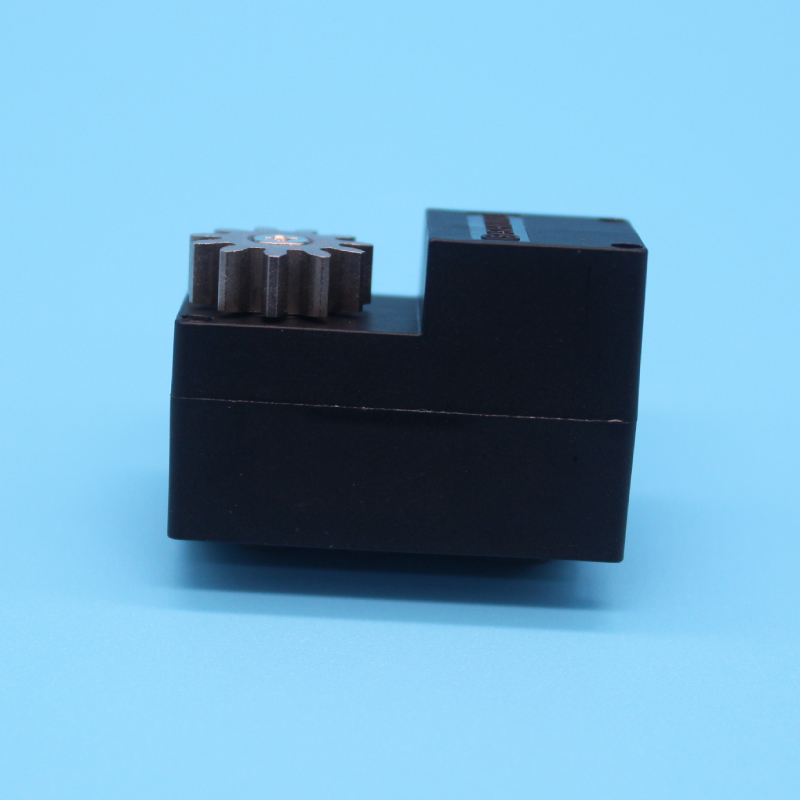

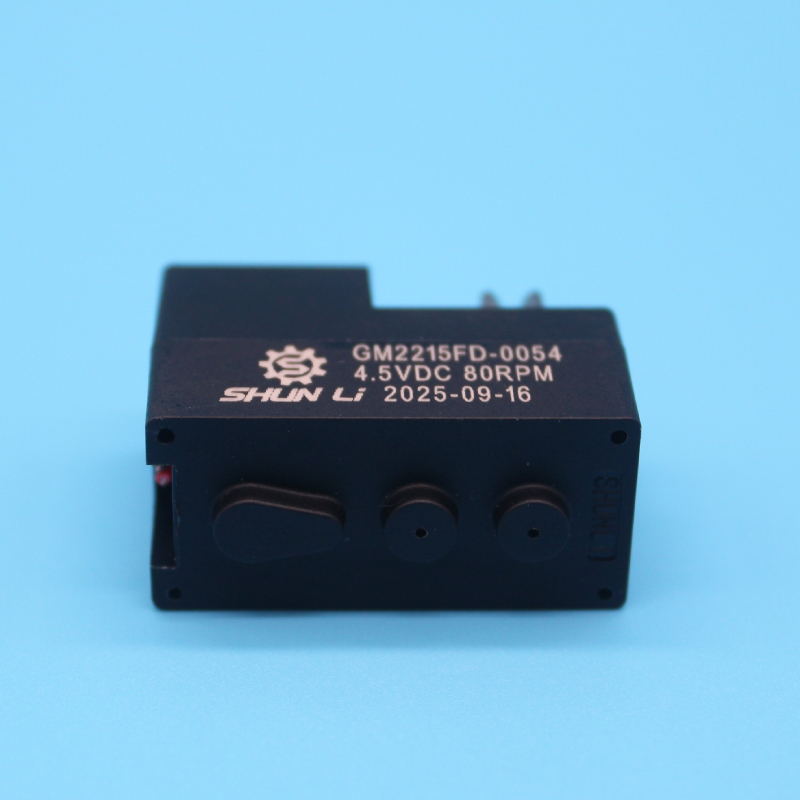

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
1 / 5
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Send Inquiry

Product Description

Product Header

Product Description

Core Specifications Overview

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor

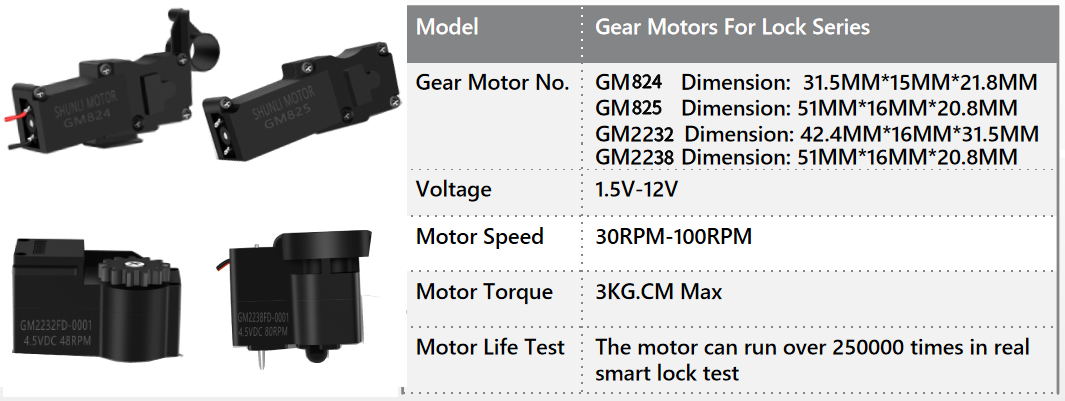

Motor Overview

Reference Drawing & Customized Specifications

We support customized motor specifications based on your specific requirements. Please find the technical drawings below for reference.

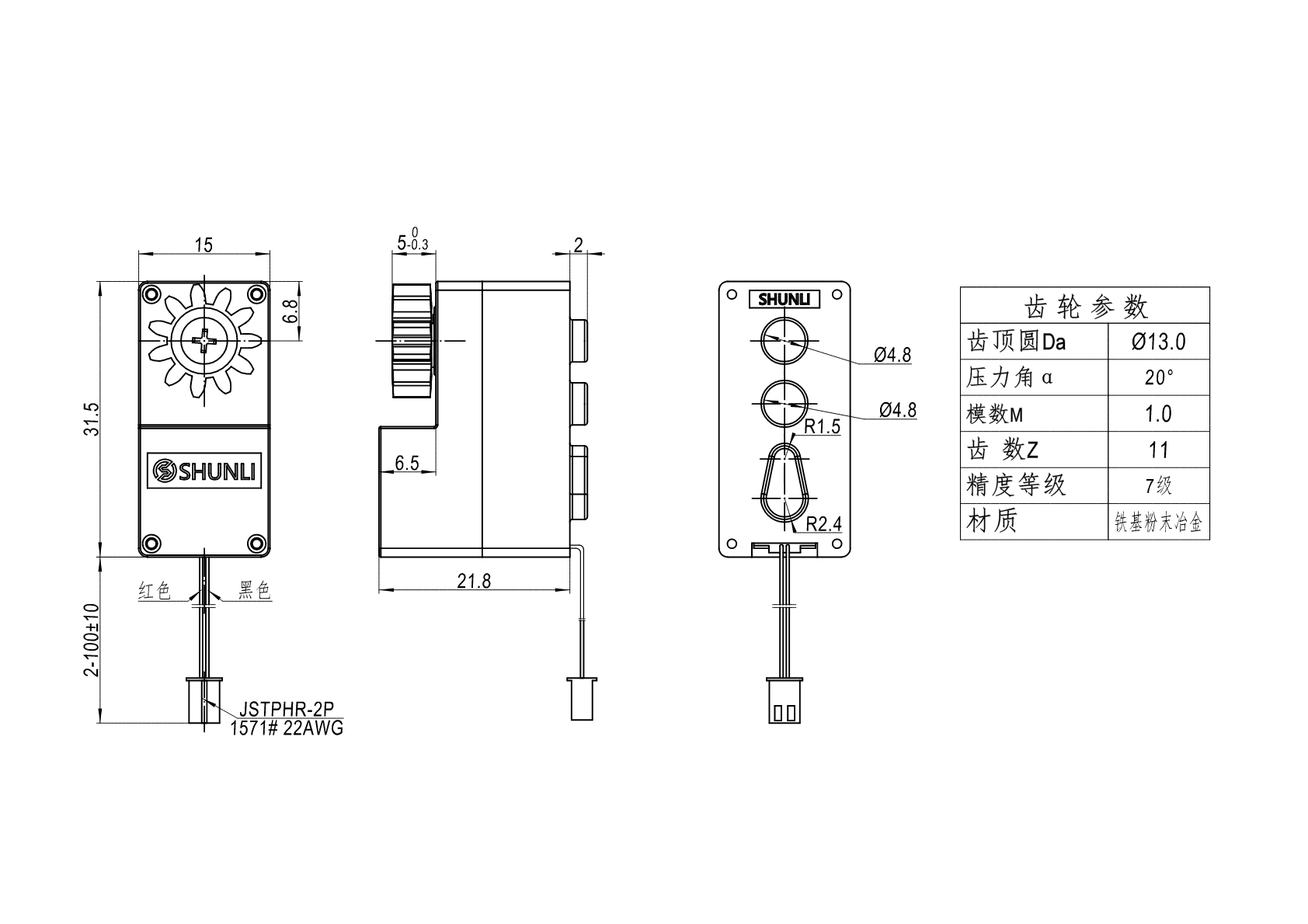

GM2215 Reference Drawing
GM2215 Technical Specification Drawing

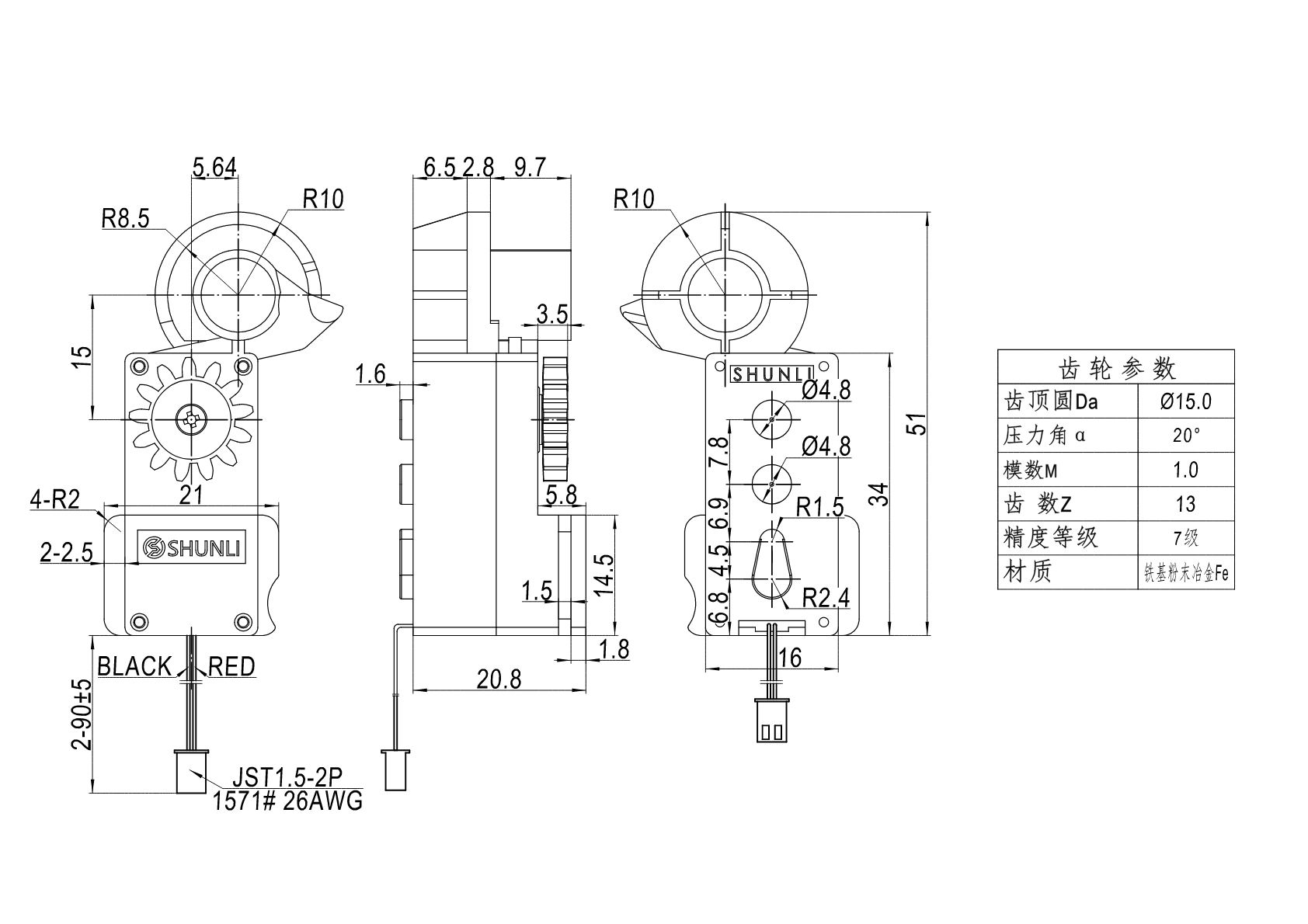

GM2219 Reference Drawing
GM2219 Technical Specification Drawing

Reference Datasheet

Gearbox Technical Data
Parameter Value / Range
Ratio 199K / 241K / 265K
Max. Rated Torque 1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m / gf.cm) Current (mA) Torque (N.m / Kgf.cm)
GM2215FMN20-199K 1 : 199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1 : 230 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1 : 241 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
GM2219FMN20-265K 1 : 241 62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2

Recommended Product Solutions

Recommended Motors Grid 1
Recommended Motors Grid 2

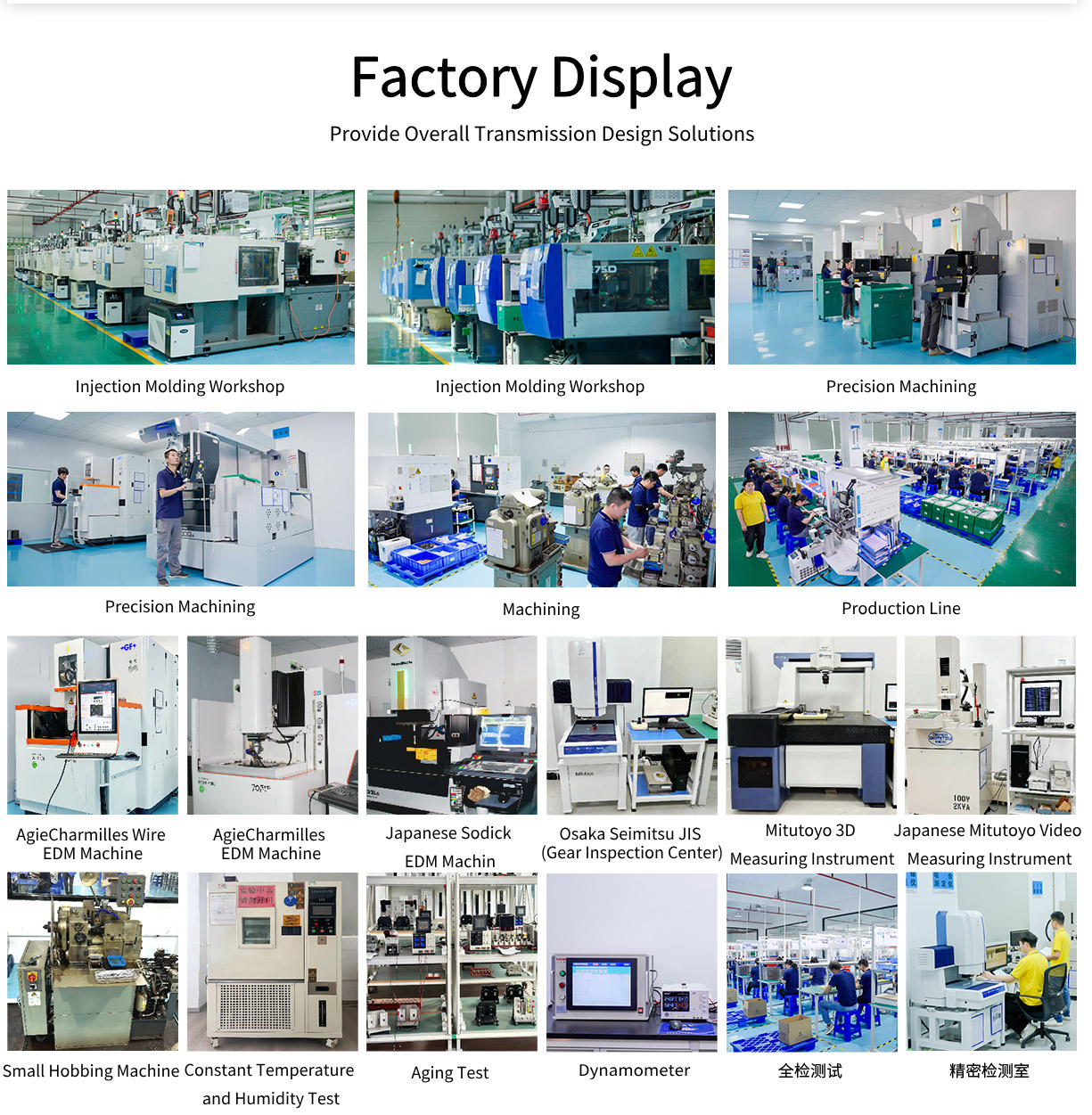

Product Showcase & Factory Production

Production Showcase 1
Production Showcase 2
Production Showcase 3
Production Showcase 4

Frequently Asked Questions

Q Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Q What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online via Credit Cards (Mastercard, Visa), PayPal, or TT.
Q I cannot find a suitable motor on your website, can you customize it for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
Q Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you require other specific certificates, we can apply for them for you.
Q How do you handle Quality Control?
We have professional inspection personnel assigned to every process of the production line. After finishing the assembly of each motor, we conduct tests using our full range of quality testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise Testers, and more.
Q Can we customize the gearbox ratio and torque parameters for the GM2215/GM2219 motors?
Yes, we can customize the specifications of the gearbox, including ratios (such as 199K, 241K, 265K) and output torque parameters, to match your smart lock or steering gear application requirements.

Looking forward to your feedback!
