Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
1 / 5
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Shunli Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Send Inquiry

Product Description

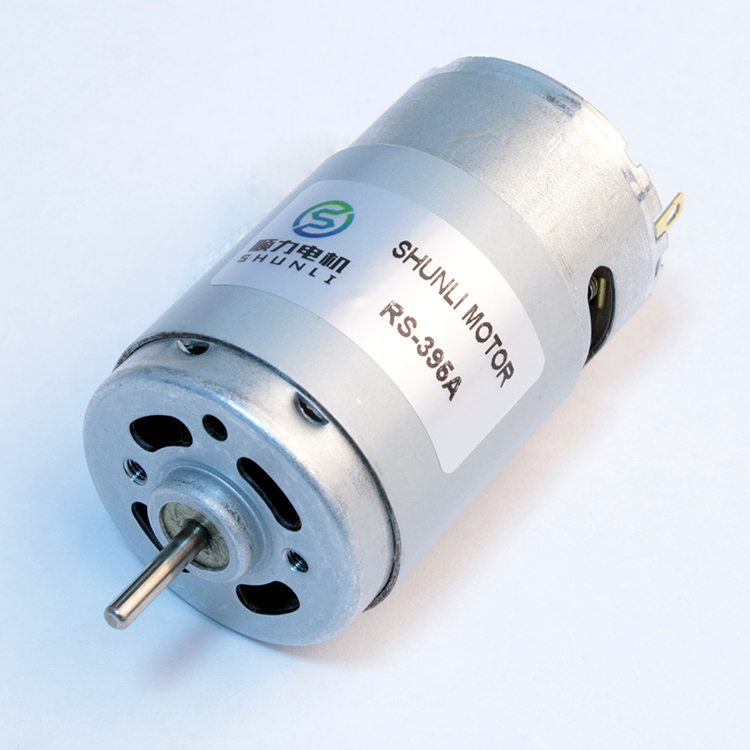

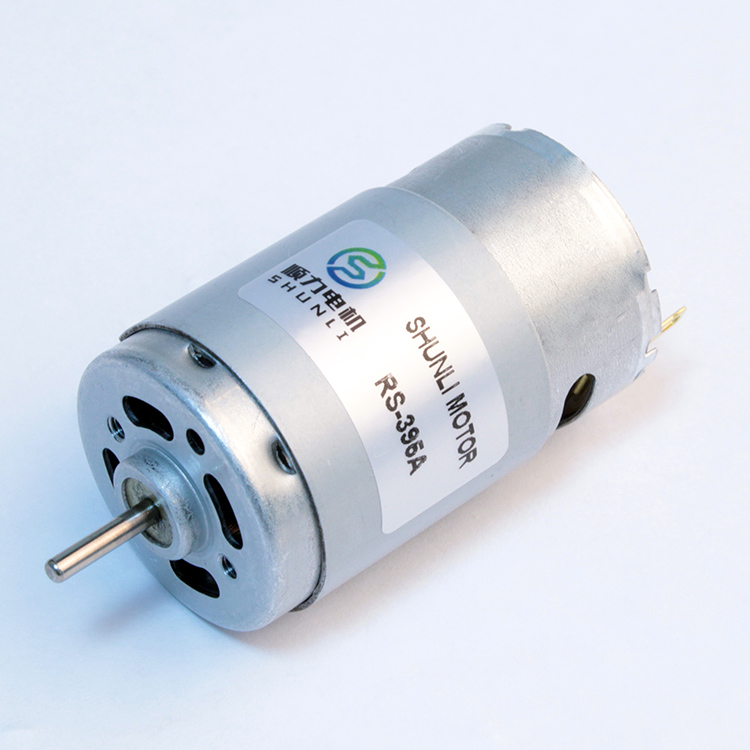

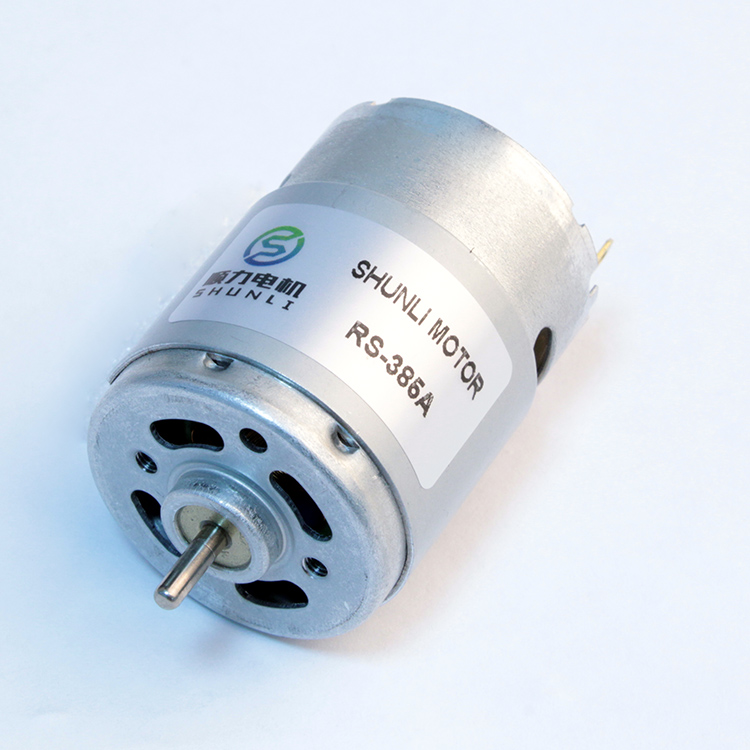

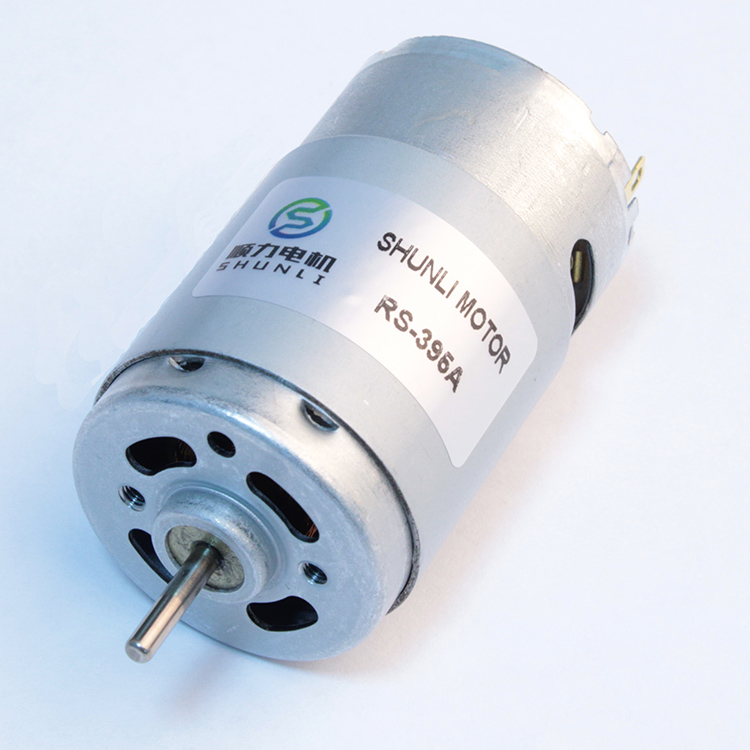

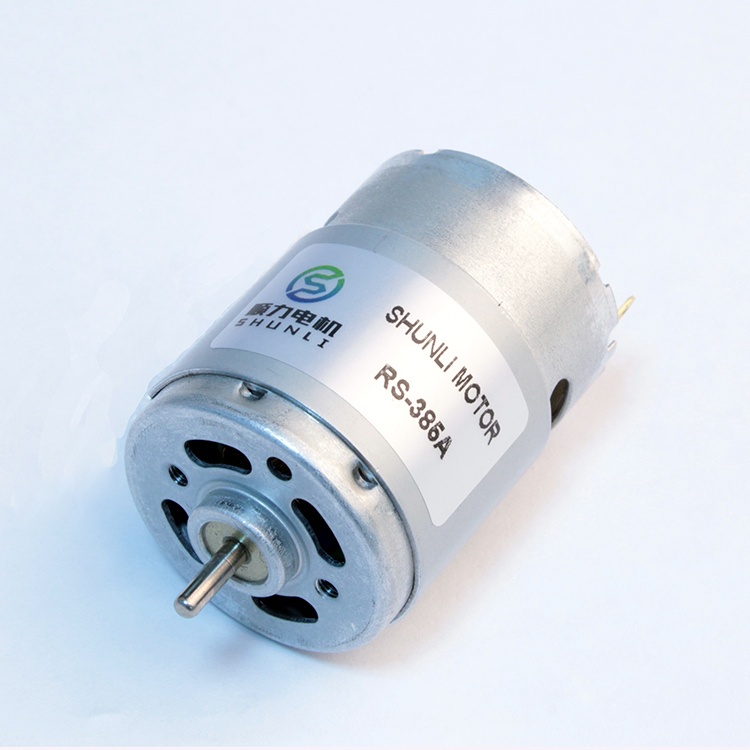

Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed

Micro DC motor 5 volt for electric vacuum cleaner carbon brush motor high speed

Product Details
Custom micro spindle Dc motor 390 5 volt for electric vacuum cleaner carbon brush motor high speed
Motor Customized Specification, Please contact me.
Reference Drawing
RS - 365
RS-365 micro spindle Dc motor
RS - 385
RS-385 micro spindle Dc motor
RS - 395
RS-395 micro spindle Dc motor
The length of shaft can be customized, Please contact me.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07 / 61.9 2.72 2.22 42.2 / 430
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75 / 58.6 1.31 8.9 80.4 / 820
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83 / 59.5 1.8 1.06 30.4 / 310
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09 / 72.3 6.68 2.66 54.9 / 560
Product Showcase
Micro DC motor detail view 1
Micro DC motor detail view 2
Micro DC motor detail view 3
Micro DC motor detail view 4
Micro DC motor detail view 5
Micro DC motor detail view 6
Micro DC motor detail view 7
Contact

Looking forward to your feedback!

Contact banner
Frequently Asked Questions
What is the typical operating voltage range of these micro DC motors?
These carbon brush DC motors operate within a range of 6.0V to 24.0V DC. Specific models like the RS-390SH and RS-395SH are rated for 12VDC and 24VDC respectively to match different power supply systems.
Are these motors suitable for high-speed vacuum cleaner applications?
Yes, our micro spindle motors are designed for high-speed performance, delivering no-load speeds up to 12,000 RPM, making them ideal for electric vacuum cleaners and related appliances requiring strong suction.
Can the physical dimensions or shaft length be customized?
Absolutely. The length of the shaft can be fully customized according to your equipment requirements. Please get in touch with us to discuss your customized specifications.
What models are available under the micro spindle PMDC series?
Our main PMDC product lineup includes the RS-365, RS-385, and RS-390 / RS-395 series, each offering different configurations of rated torque, RPM, power, and operating range.
How do I choose the correct motor model based on torque and speed?
Refer to our reference datasheet to compare the torque (mN.m / gf.cm) and load speed (RPM) values. For example, model RS-390SH-2975 offers higher RPM and torque than model 20156R under nominal 12VDC.
