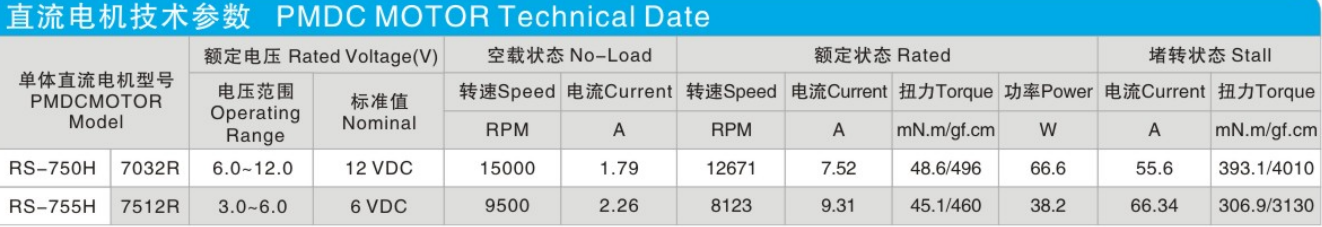

| PMDC MOTOR Technical Date | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team, mature management, and experienced engineering and sales team will bring you a pleasant purchasing experience.
In order to confirm quality, from received materials to shipment, every step of the way is carefully checked. Quality is the basis of our development.
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
We can draw up an Online Trade Assurance Order for our new customers, which can be paid online via Credit Card, Visa, etc. Customers can also pay via PayPal or T/T.
Yes, we can customize a suitable motor according to our customers' specific requirements.
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
We have professional checking staff on every production line process. After finishing the whole motor, we test it using specialized equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Yes, the length of the shaft can be customized according to your specific requirements.
